- In complex congenital heart disease periprocedural planning with a review of imaging and previous interventions is key to a successful outcome.
- Conduction system pacing is likely to become an increasingly popular choice for complex pacing in CHD.
- Interventional and hybrid techniques may become of increasing use in the most complex cohort of patients.
When speaking to patients about pacing in CHD it is important to discuss the risks and benefits posed by pacing as well as the impact that pacing may have in terms of their long-term outlook. This includes how pacing may affect their requirement for further procedures. Many patients will have had multiple procedures throughout their life and reassuring them that techniques exist now to help them receive safe pacing is key.
The number of patients born with congenital heart disease (CHD) per year seems to have remained largely stable  but despite continuing improvements in paediatric and adult care, the overall number of patients with congenital heart disease continues to rise . More cardiologists are likely to see and need to treat congenital heart disease patients, many of whom have conditions where the indication for pacing is high . These cases can present challenges at implantation and impose long-term considerations given the often-younger cohort who may need further structural interventions.
Indications for pacing
Most of the indications for pacing in congenital heart disease are identical to that seen in the cohort of patient’s with an acquired disease, with some nuances in more complex disease states.
Common indications are summarised below for sinus node disease (SND) and atrioventricular block (AVB)  in Table 1.
Table 1. Indications for pacing in CHD.
|Common indication in congenital cardiology
|Bradycardia-induced ventricular tachycardia (VT) not requiring a defibrillator
|SND leading to atrial arrhythmias
|Sinus bradycardia less than 40 or pauses over 3 seconds with complex CHD
|Haemodynamic effects due to SND or loss of synchrony
|Symptoms likely due to bradycardia but without confirmatory evidence
|VT due to AVB
|Asymptomatic AVB with complications such as low output or prolonged QT
|Postprocedural complete AVB lasting more than 7 days
|Symptomatic second-degree type 1 AVB and above with His disease at electrophysiology study
|Syncope with bifascicular conduction disease and previous complete AVB post-surgery
|Transient complete AVB post-surgery with residual bifascicular conduction disease
AVB: atrioventricular block; CHD: congenital heart disease; SND: sinus node disease
It is important for physicians to be aware of some of the more common conditions in adults with CHD that require pacing, with dextrotransposition of the great arteries (D-TGA) repaired by an atrial switch, and levotransposition of the great arteries (L-TGA) and left atrial isomerism all having high rates of pacing .
The level of periprocedural preparation is often higher than in non-congenital pacing with more workup required.
Commonly, preprocedural planning involves an echocardiogram, a review of the case notes and the interventional history but as the level of complexity increases, detailed cross-sectional imaging, angiography or 3D electroanatomical mapping may be needed.
Vascular abnormalities are much more common in patients with congenital heart disease and, if not prepared for, can cause difficulties as simple as a persistent left-sided superior vena cava (SVC) with or without a bridging vein to more complex anomalies.
As leadless pacing becomes more popular, operators will need to be more aware of complex lower limb abnormalities that may occur precluding easy inferior venous access to the heart, such as an interrupted inferior vena cava (IVC) in atrial isomerism . In these cases, a superior approach from the appropriate jugular may be used.
In addition to vascular abnormalities, a childhood history of multiple interventions often leads to vascular occlusion and stenoses making access difficult and techniques utilising micropuncture or recanalisation may be needed.
Next in periprocedural preparation is to plan how to deliver the lead or leadless device which may require an understanding of obstructions such as baffles, conduits and valve replacements which are more relevant as the complexity of CHD rises. In addition to just delivering a lead to a location there can be issues as to whether the area the cardiologist can reach is paceable, such as in the Fontan circulation .
In younger patients where there is likelihood for multiple interventions over time, the smaller lumenless SelectSecure leads (Medtronic) which are potentially easier to extract in the setting of congenital heart disease, may be a more attractive option compared to standard leads . This becomes an important factor when reviewing the high rate of lead failures observed in CHD .
The other important equipment choice then surrounds the risk of infection and endocarditis, as despite a wide range of studies, the risk in patients with CHD is markedly higher . In this context dependent on the amount and type of pacing required, leadless pacing may become a more favourable option as leadless devices have a much lower rate of infection compared to lead systems .
Specific issues in complex pacing in CHD
In CHD the incidence of coronary sinus abnormalities is much higher with abnormalities such as a persistent left SVC, an unroofed coronary sinus or an absent coronary sinus (CS) making traditional lead delivery difficult or impossible . In these cases, sometimes Thebesian veins or collateral veins can be utilised. In some pathologies the CS may not be accessible at all for resynchronisation, such as the atrial switch for D-TGA.
In addition to this, many patients in the CHD cohort have right bundle branch block (RBBB) and the utility of resynchronisation in this cohort is less well proven than in the left bundle branch (LBB) block cohort .
As a result of some of these issues, conduction system pacing (CSP) has become of particular interest to doctors treating patients with CHD. There are, however, more difficulties in delivering this therapy to CHD patients that need to be thought about and overcome, which are summarised below:
- Ventricular septal defects (VSD) or a repaired VSD patch when trying to screw into the LBB area.
- Unpredictable/variable conduction system location in levotransposition of the great arteries.
- Significant right ventricular (RV)/atrial (RA) dilatation making lead delivery or support difficult.
- Hypoplastic RV with limited space to deliver leads to the conduction system.
- Severe tricuspid or pulmonary regurgitation
- RV hypertrophy preventing the lead reaching the LBB area.
- Atrial switch procedure with baffles preventing easy sheath delivery to the septum.
Although there are challenges, the superior resynchronisation opportunities and ability to deal with non-LBB block pathologies means CSP is likely to be used more frequently in the CHD cohort and can be completed in most patients with enough planning .
Pacing in specific CHD conditions
Atrial/ventricular septal defects (ASD/VSD)
Whilst not complex defects on their own, these can cause issues for the implant team due to the difficulty of making sure that one has not crossed into the left atrium or left ventricle inadvertently, via the defect. In these cases, careful tracking of the atrial lead into the IVC before retracting back/deployment with multiple views is helpful, as is advancing the ventricular lead into the pulmonary artery/ventricular outflow tract to confirm positioning. In addition to this, direct pressure measurement or angiography can be used to support lead positioning or a leadless device.
Depending on the severity of the disease and whether the tricuspid valve has been repaired or not, traditional pacing to the right ventricle may be difficult or not desired. In a small RV the amount of paceable myocardium maybe small and lead delivery tricky, sometimes a sheath may be required. In cases where there is a repaired or a replacement valve, traversing the valve with a lead may contribute to dysfunction or make further valve-in-valve therapy difficult. In this case either leadless pacing or a single ventricular S-1 lead via the CS may be a preferred option.
Whilst current available data suggest transvalvular leads are not associated with earlier bioprosthetic tricuspid dysfunction  and that valve-in-valve can be carried out with an existing lead in situ , many clinicians are concerned about the risk of endocarditis in leads jailed in prostheses.
Tetralogy of Fallot
The major challenge if there is no residual VSD can be in dealing with an hypertrophied RV which may have undergone multiple surgical procedures with large amounts of scar tissue and finding healthy myocardium can require multiple positions. In addition to this, the position of the heart can be relatively more horizontal in the chest and anteriorly rotated.
Pacing in L-TGA normally requires the use of an active lead as the subpulmonary left ventricle may have less trabeculae to deliver a passive lead to. Pacing in L-TGA can be more difficult beyond the need to use an active ventricular lead, as associated abnormalities such as dextrocardia, atrial isomerism etc. are very common and may make traditional routes or fluoroscopic views more difficult .
Again, ventricular pacing here is to a subpulmonary left ventricle and the angulation via the atrial baffle can be difficult with a lead that will bias to the left ventricle (LV) free wall or left atrial free wall. Delivery of the atrial lead almost always requires an active lead and position, again, can be difficult as the baffle may direct the lead towards the ventricle. Care must be taken also to test and ensure no phrenic capture due to the position of the leads in the LV and left atrium.
Prior to pacing in this cohort, an assessment should be made to ensure there is no baffle stenosis in the SVC baffle before the leads are placed, as prestenting a stenosis is recommended.
Cyanotic heart disease
Much of the same guidance that applies to pacing in ASD/VSD applies here, in terms of lead/leadless deployment with the added caveat that due to increased pressure in the cardiac chambers, either at the atrial or ventricular level, lead/leadless delivery may be more difficult and extra support may be needed.
In patients with cyanosis, right-to-left shunting is associated with thromboembolic risk. Pacing itself in the presence of a shunt is associated with higher rates of thrombosis, irrespective of the level of cyanosis , and most centres, in the absence of good quality evidence, would anticoagulate in this setting. In the future there may be a trend towards leadless pacing in this cohort, as there may be less thrombotic risk associated with the device coating relative to traditional leads.
A selection of the techniques to overcome the challenges above are shown below in Figure 1.
Figure 1. Pacing techniques in complex CHD.
A) Angiography of the coronary sinus in a patient with a large VSD and Eisenmenger’s; B) The same patient with a pacing lead in the coronary sinus (starred) to prevent inadvertent lead positioning; C) His pacing in a patient with L-TGA and a mechanical tricuspid valve (blue star: His lead); D) Dual chamber pacing lead placement in a patient with D-TGA and left SVC.
D-TGA: dextrotransposition of the great arteries; L-TGA: levotransposition of the great arteries; SVC: superior vena cava; VSD: ventricular septal defect
The Fontan procedure is a historical series of palliative procedures for single ventricular physiology which commonly results in the removal of venous access to a ventricular mass. Often patients will have had multiple surgical procedures leading up to the completion of a Fontan circuit. Historically, pacing in this group has largely been epicardial and remains the mainstay option but as the epicardial failure rate is 30% at 5 years  other techniques have emerged which are discussed below.
The first Fontan procedure (APF) commonly utilised a connection from the right atrial appendage to the pulmonary artery (PA), initially to deal with tricuspid atresia, and was subsequently modified to a lateral tunnel incorporating part of the atrium from the IVC to the PA, with an SVC-to-PA connection and finally, a totally extra-cardiac conduit from the IVC-to-PA with an SVC-to-PA connection. These last two forms were used for a wider spectrum than single ventricular pathology.
In the APF cohort, atrial pacing may be achieved relatively simply as direct venous access to the atrial mass is standard but often the atrial mass is scarred and hugely dilated. A support sheath and voltage mapping can help. Ventricular pacing is often more difficult but may be achieved, if, at the area where the tricuspid valve would have developed, there are some residual ventricular fibre connections, or if there is an atretic tricuspid valve with access to the hypoplastic ventricle or via the coronary sinus, if available.
In the lateral tunnel group, atrial pacing again is available via the part of the tunnel formed from natural atrial tissue but ventricular pacing is difficult due to the lack of access to ventricular tissue. In this situation alternative techniques must be used such as mapping of the pulmonary artery stump which has been disconnected from the ventricular mass or through the use of interventional fenestration techniques.
In the extra-cardiac conduit (ECC) cohort, there is no venous access to atrial or ventricular tissue and before considering a transfenestration approach, mapping of the PA for any atrial signal or residual ventricular signal in the PA stump may be tried. If these options fail, and, as mentioned above, a traditional epicardial approach is not taken, then newer techniques via a fenestration may be employed .
In situations where a transfenestration technique has been used with material in the systemic ventricle or pulmonary venous atrium, anticoagulation is mandatory.
A selection of pacing techniques for the Fontan group are shown below in Figure 2.
Figure 2. Pacing techniques in the Fontan.
A) Angiography of the main PA stump in a ECC Fontan. B) A ventricular pacing lead in the main PA stump with ventricular capture. C) Pacing in an APF with dextrocardia with the ventricular lead in the coronary sinus. D) Creation of a fenestration using a balloon in an ECC Fontan. E) Successful delivery of both ventricular and atrial leads via the fenestration. F) Delivery of a leadless pacemaker via a fenestration in an ECC Fontan.
APF: Atriopulmonary Fontan; ECC: extra-cardiac conduit; PA: pulmonary artery
The number of patients with congenital heart disease continues to rise every year and as more patients survive for longer there will be a likely increase in the number of patients needing pacing.
There are technical challenges in these patients that need appropriate preparation before undertaking procedures in this cohort.
With newer technologies and techniques, a wider group of patients can be successfully treated and in some cases, this may mean that surgical pacing can be avoided in the future.

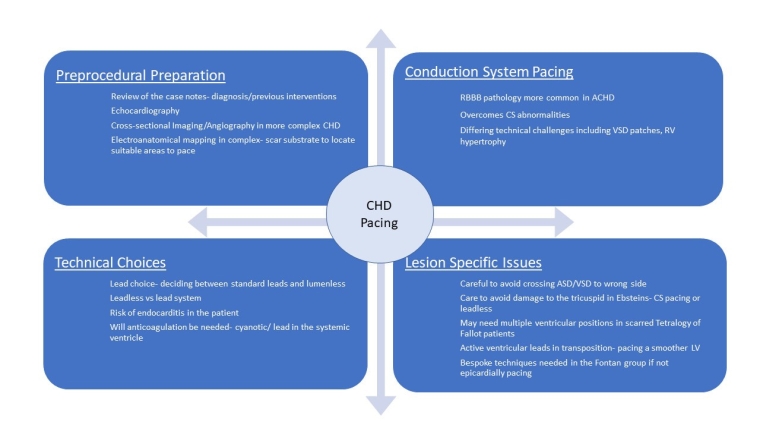

Central Illustration. Pacing in CHD.
ACHD: adult CHD; ASD: atrial septal defects; AVB: atrioventricular block; CHD: congenital heart disease; CS: coronary sinus; RBBB: right bundle branch block; LV: left ventricular; RV: right ventricular; VSD: ventricular septal defects
