Patient with NSTEMI and CABG

Professor Matthias Wilhelm, Cardiopulmonary Exercise (CPX) Testing Quiz Section Editor

Rehabilitation and Sports Cardiology


The case

  • EF 60%
  • dyspnoea NYHA II and loss of performance
  • male patient, age 61
  • weight: 99 kg; size: 182cm
  • BMI: 29.89; Body surface: 2.20 m2

Test findings

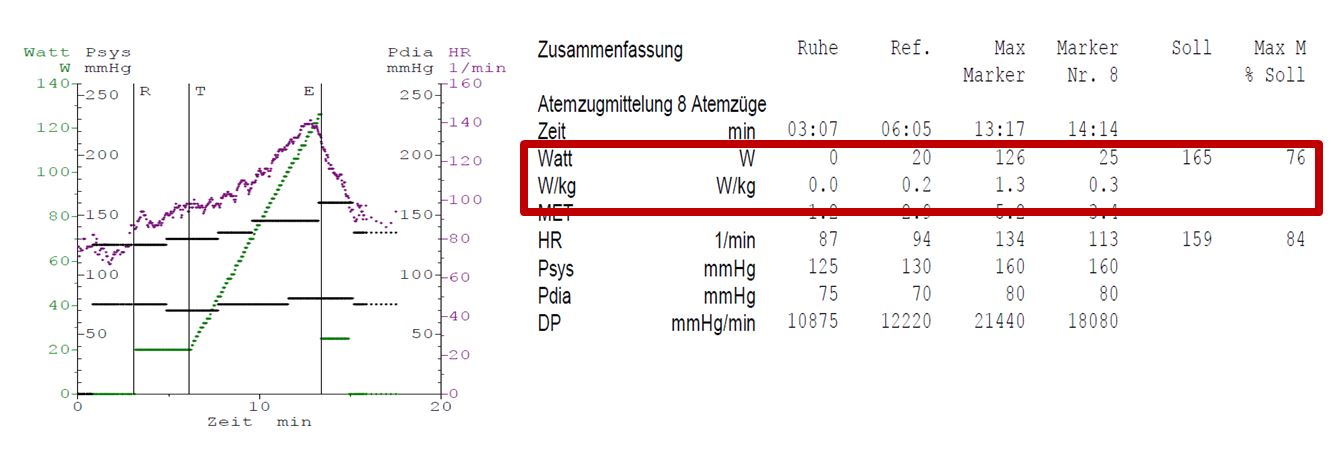

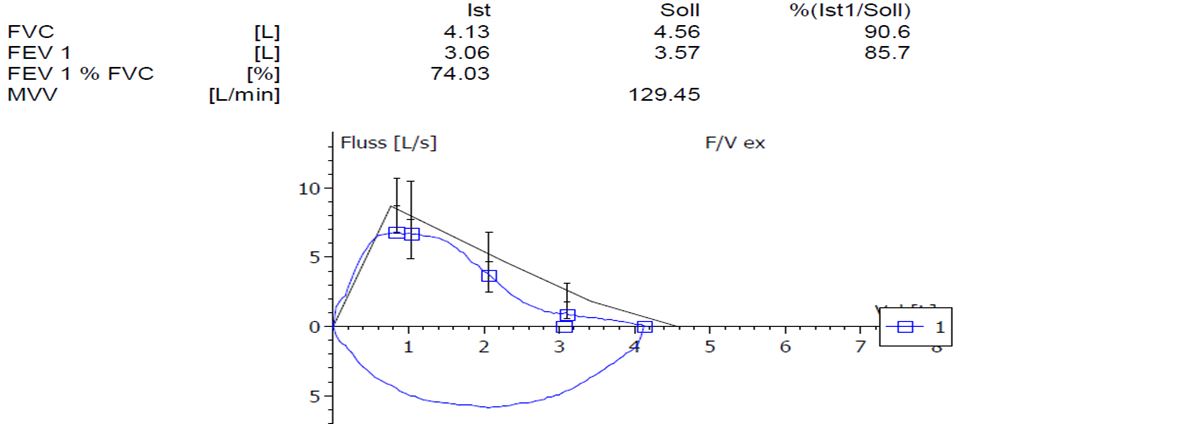

Spirometry







ECG Derivation

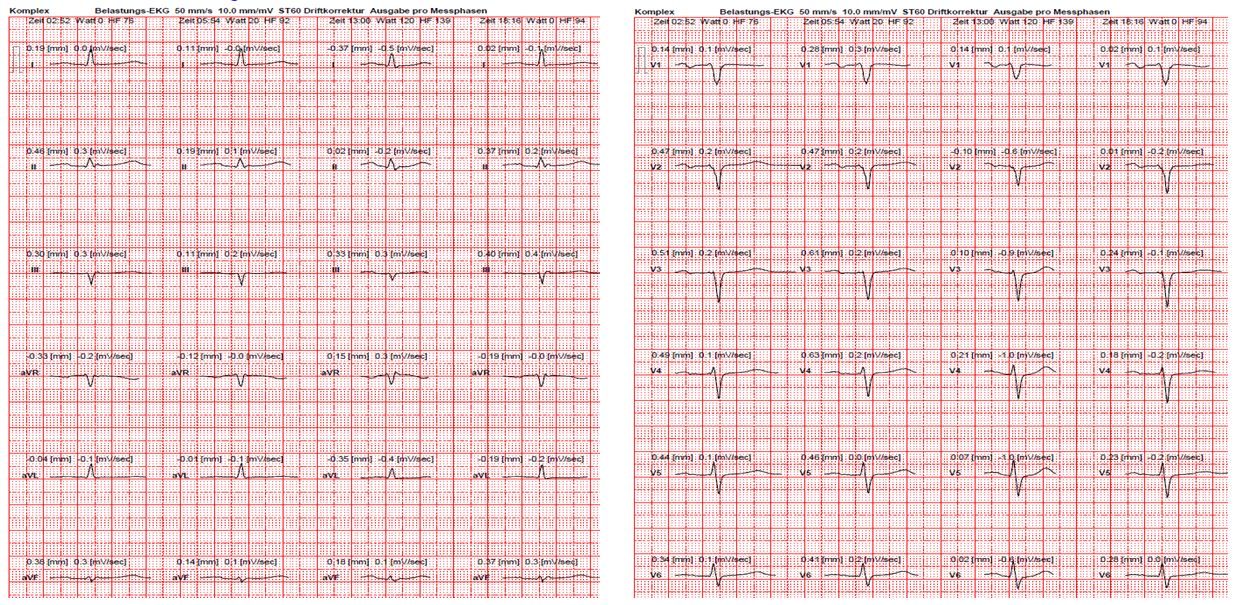

ECG extremities derivation (left) / ECG chest wall derivation (right)

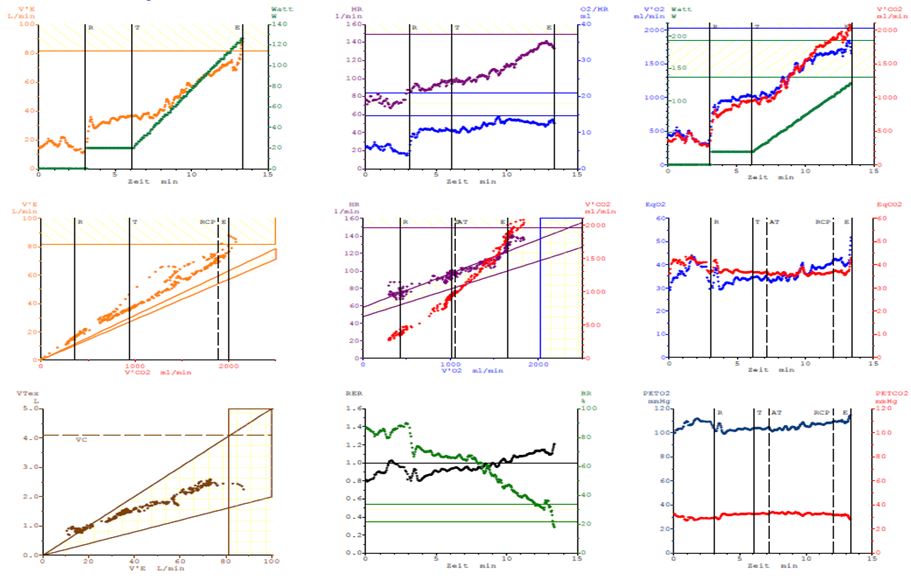

9 Panel Plot of the Cardiopulmonary Exercise Test




Test your knowledge



Interested in learning more?

Access the ESC e-learning platform on prevention, cardiovascular risk factors and sports cardiology .

Not yet an EAPC member ?


Join now
